Upgrade Options

available when order your Wrangler

2

3

4

WRANGLER MODEL

FRONT FOOT SUPPORT

BACK LEG WINCH

HEADBAIL

FLOOR & EXTRAS

1

Choose Model
Fixed in place or Mobile

2

Choose Front Foot Supports
Non-winched or winched
Economy Front Foot Support

STANDARD

The cows front leg is raised to the support with the help of the rope braid which is wound around the leg.
The braid is then secured in the self-tightening cleat.


NB This comes standard unless upgrade is selected.

Winched Front Foot Support

UPGRADE OPTION

The Winched upgrade makes lifting a cows front hoof easier.

Place the handle in the barrel of the winch.  Disconnect the long strap from the short strap which is connected to the support block.


Place the strap around the cows leg and back through its end loop, then reattach back to short strap.
Winch the cows leg, using your hands to help guid and lift the leg until it is lying in the front foor support. Remove the winch handle and place back in its' keeper.


The braid can be wound around the cows leg twice (to spread the load) then attached in the cleat.  The cleat activates on the upwards pull so is self-tightening if the cow tries to struggle.



© 2015 The Wrangler Ltd

®The Wrangler, ROG, and PollenSmart designs, logos, and names are subject to New Zealand and worldwide patents and trademarks.

3

Choose Back Leg Winch
Clapper Back Leg Winch

STANDARD

Standard on all Wrangler models.

Clapper winch with 'steering wheel' handle.  Braked on the way up then release clapper to lower cows' leg.

Braked Back Leg Winch

UPGRADE OPTION

Stainless Steel Braked Rear Leg Winch 4.5:1 ratio.

Gives added control and safety when lowering leg.  Wind the leg up then wind the leg down.
Recommended for situations where there are staff and safety is vital.







4

Choose Headbail

UPGRADE OPTION

Faster, safer, and easier

Close headbail  from behind cow.
When finished pull lever which releases both yokes
allowing cow to step through the front of the headbail to exit.

Walk Thru Headbail

Close from behind by pulling gate rope.  When treatment is finished, lift clapper to release yolk then lift pin and swing open the headbail gate for animal to walk out.

STANDARD

Gate Headbail

5

Add Flooring:

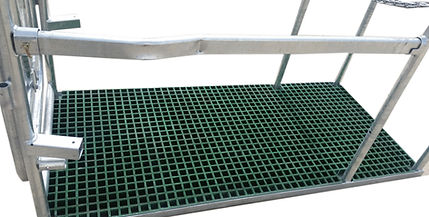

Green Grating
Rubber Matting

To allow for freestanding use

Required if Race or Base are to be used without bolting in place.
e.g. temporary at cowshed or for use in paddock.

Comes standard in Premier and Pro Wranglers. As the wood can become slippery, we recommend a mat over the wooden floor.

Wooden Floor

Diamond Grip Rubber Matting

20mm extra-thick, with large cleats on top for grip.

For greater cow comfort & grip.
Helps the cow stand more sure-footed and not 'dance around'.
Highly recommended for Race as cows generally don't like standing on concrete.  Excellent in Premier Wrangler where the wooden floor can otherwise become slippery.  Comes standard in Pro Wrangler

16 mm Rubber Matting with textured top

Wide Tyres


More options:
Quick Chain Release

For easy release of backing chain when backing cow out of Wrangler.

Standard on Premier and Pro

Swing Gates

Small gates for around Wrangler.  Standard with Pro Wrangler.

Right Side Removable

for ExploratorySurgery

NB this is in addition to the left-side removable which is standard on all Wrangler models

Premier Upgrade for use on wet terrain

Rear Gudgeons

For hanging gates from back of Race Wrangler (standard on Premier)

Additional Bars

Extra removable side bars available

Calving Attachment

For cows requiring calving assistance.

  • Rotates up and out of the way for cow to walk in.

  • Two angle settings.

  • Uses Wrangler top winch.

  • Farmer can use both hands for calving with no equipment on cow to get in the way.

  • Additional tension can be added by pushing on rope.

  • Great on Premier as mobie calving crush in the paddock

Download

Calving Attachment

Instructions pg 1

Download

Calving Attachment

Instructions pg 2
